Product Description

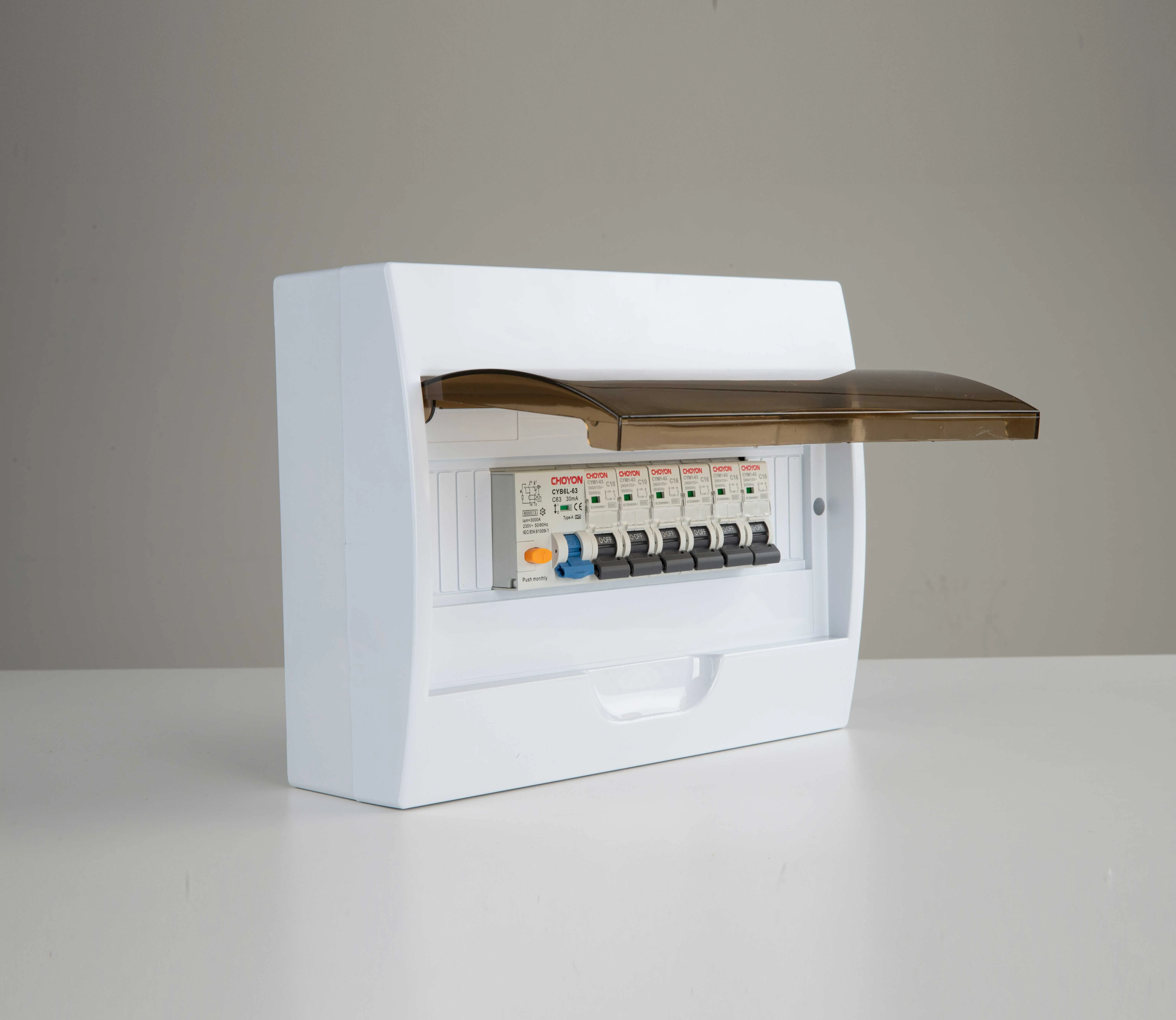

RCCB – Type A / F / S
CHYOYON RCCB provides reliable protection against earth leakage faults in residential and commercial applications, ensuring safe and stable operation.
Compliant with IEC / EN 61008-1, it delivers consistent performance for modern electrical distribution systems.
Technical Specifications
Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
Electromagnetic RCBO-Type A/F/G/S
| Standard | IEC / EN 61008-1 |
| Number of Poles | 1P+N / 3P+N |
| Rated Current (In) | 16A, 25A, 40A, 63A, 80A, 100A |
| Residual Operating Current (IΔn) | 30mA / 100mA / 300mA |
| Residual Current Type | Type AC / Type A / Type F |
| Time Delay | Instantaneous / Type S (selective) |
| Conditional short-circuit current (Inc) | 6kA / 10kA |
| Rated Voltage (Un) | 1P+N: 230V AC 3P+N: 400 / 415V AC |
| Insulation Voltage (Ui) | 500V |
| Frequency | 50 / 60 Hz |
| Electrical / Mechanical Endurance | 4,000 / 10,000 operations |
| Degree of Protection | IP20 |
| Ambient Temperature | −25°C to +55°C |
| Terminal Capacity | 1 – 35 mm² (solid or flexible) |
| Model | Type | IΔn (mA) | In (A) | Modules | Curve | Breaking Capacity |
|---|---|---|---|---|---|---|
| C Curve | ||||||
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 6 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 10 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 16 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 20 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 25 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 32 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 40 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 50 | 2 | C | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 63 | 2 | C | 6kA / 10kA |
| B Curve | ||||||
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 6 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 10 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 16 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 20 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 25 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 32 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 40 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 50 | 2 | B | 6kA / 10kA |
| CYB6L-63 | AC / A / F | 10, 30, 100, 300 | 63 | 2 | B | 6kA / 10kA |
